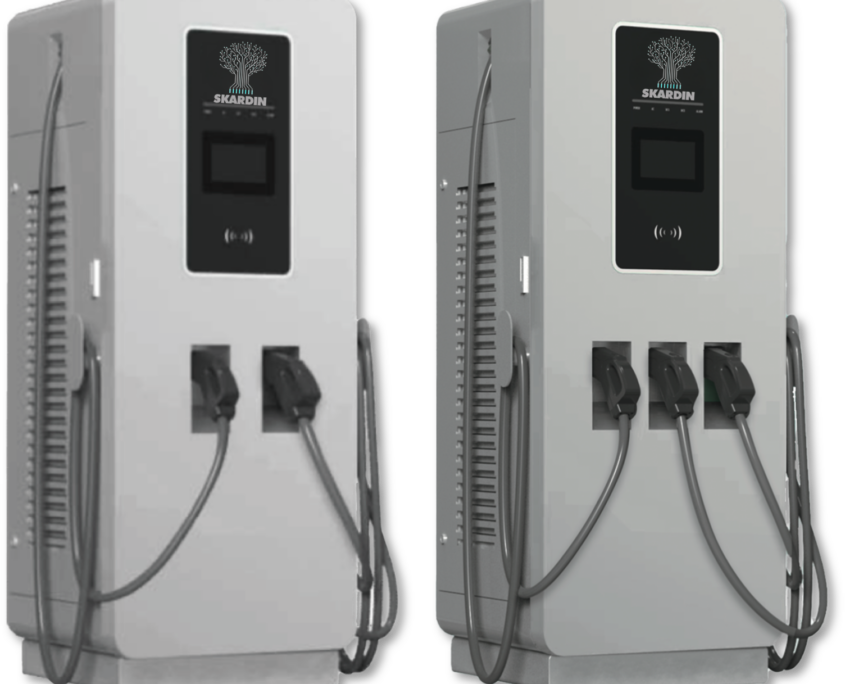

DC Charging Station
➷ 2DC or 2DC+AC (Customisable and Flexible to operator needs.)
- Fully compatible with OCPP 1.6 J-SON protocol
- Cloud control , big data statistics and payment solution.
- 4G / Ethernet / WIFI network communication / RFID
- 10.1-inch LCD touch screen
- App control and OCPP management platform available for commercial operation
- Emergency stop charging function
- Wide voltage (200~1000V), wide current (0-800) output
- IP55 & IK10
DC charging station is specifically designed with a modular structure to ensure maximum flexibility and to allow for upgrades. The station can dynamically allocate total power to the outputs, according to users demands or to the availability of the grid.
DC Parameter Instructions
120KW
- AC Input Rating : AC400V(±15%)3ph
- Rate Input Current : 3∅200A
- Power Factor : ≥0.99
- Efficency : ≥95%
- DC Output Voltage Range : 200V-1000V
- MAX.Output Current : 400A(system)
- Voltage Accuracy : ≤±0.5%
- Current Accuracy : ≤±1%
- Operating Temperature : -30℃~ +50℃
- Humidity : <95% relative hunidity,non-codensing
- Altitude : ≤2000m(6000 feet)
- Cooling : Air Forced
- Protection : Over current,Under voltage,Over voltage,Residual current,Surge protection,Short circuit,Over temperature,Ground fault
- Certificate : CE
180KW
240KW
360KW
Certificates
- CE
- TUV
- UL
- CB
- Charging pile and charging module patents
